LJZXS-3200

CNC Milling and Drilling Machine (Rotary worktable)

Chassis brand: JMD
X/Y/Z axis stroke: 3200mm/300mm/200mm
Repeat positioning accuracy: ±0.02mm

1.HAN*S CNC system with friendly human-computer interface, easy to operate
2.Suitable for processing aluminum, wood, copper and UPVC profiles
3.Worktable rotates at +/- 90 °, processing three sides of the profile in the same working cycle

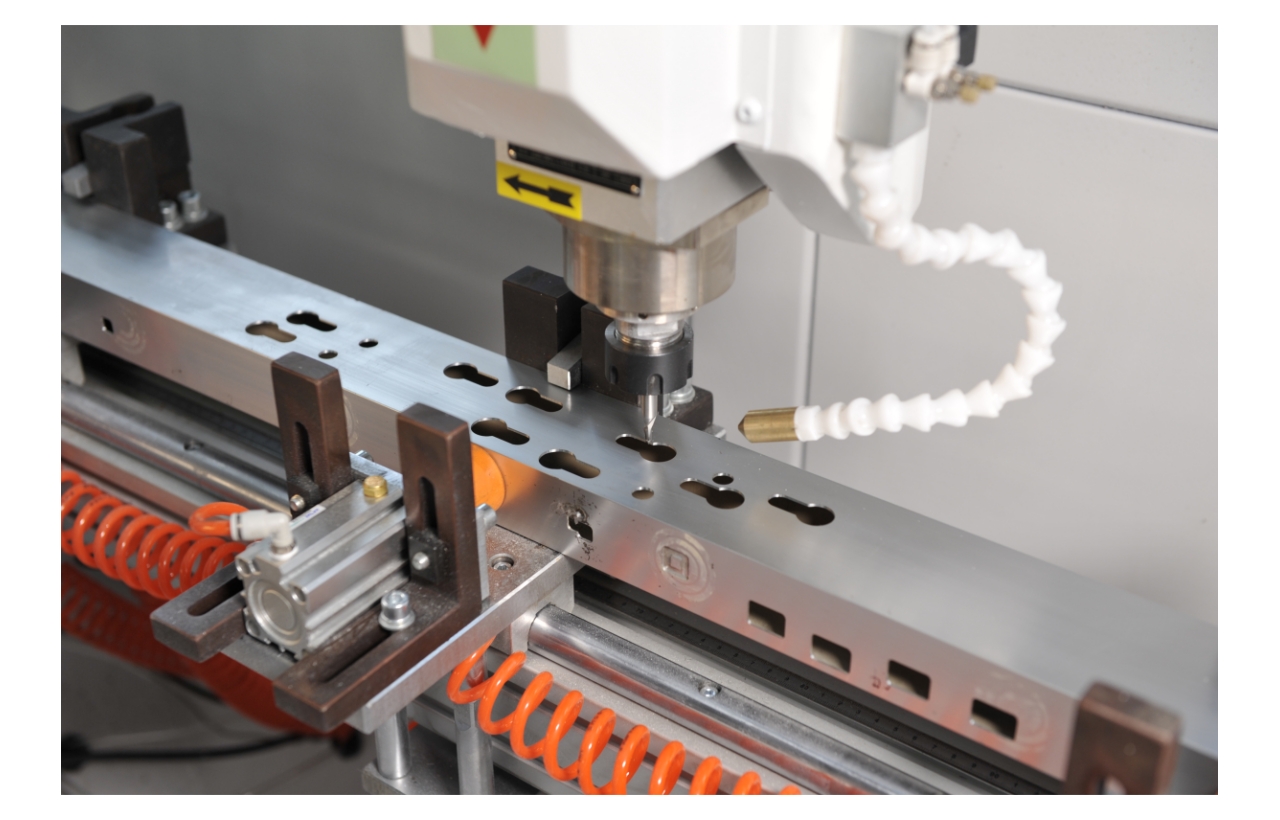

4.Suitable for processing key holes and slots with high efficiency and precision.
5.Equipped with high-precision linear guide rail pair, ball screws, rack, pinion and servo motor , ensures the stable running

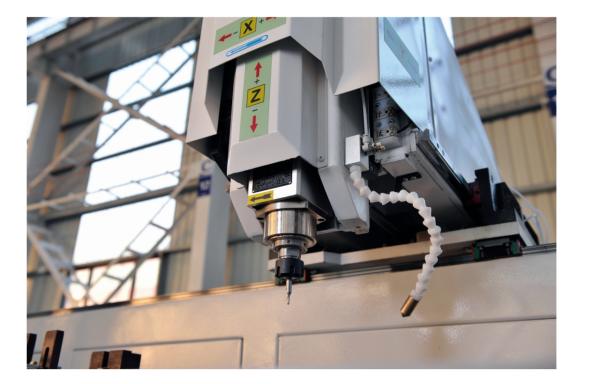

6.High-speed spindle, runs stably with low noise

X/Y/Z axis stroke

3200mm/300mm/200mm

Power supply

380V,3Phase,50Hz

X axis feeding speed

0~60m/min

Spindle power

3.0kW

Y axis feeding speed

0~25m/min

Spindle rotating speed

0~24000rpm

Z axis feeding speed

0~25m/min

Total Power

6.0kW

Machined surface roughness

Ra 6.3 um

Working air pressure

0.6~0.8MPa

Repeat positioning accuracy

±0.02mm

Overall dimensions

4400*1420*1750mm

Z axis positioning accuracy

±0.05mm

Weight

1200Kg


Tag: #CNC aluminum milling machine, #CNC Router Milling Aluminum, #Best aluminum for cnc milling
