Double-Station Aluminum Machining Center

Key Parameters

Chassis brand: JMD

Cutting angle: any angle between ± 45 °

Length machining range: 350-6500mm

Benefits & Features

This machine can cut the aluminum window profiles and some industrial aluminum profiles and drill, mill holes on four-side of the profiles. It’s can process some elements such as glue injection hole, pin holes, screw holes, mounting holes, laser marking, etc first, and then cut profiles at any angle between - 45 ° and +45°. If there’s no holes on top and bottom side of the profile, the profile will be unloaded; If there’s holes on top/bottom side such as handle hole, lock hole and water drainage hole, etc, the profile will be dragged to the 4-axis milling part by the manipulator. This work logical dramatically improve the machine’s work efficiency.

Technical Parameters

Technical Parameters: Double-Station Aluminum Machining Center

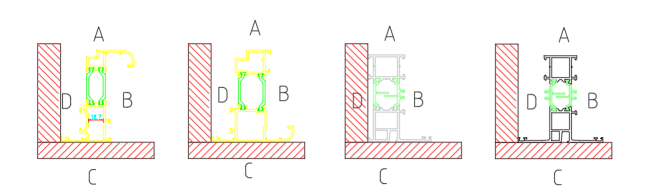

Basic Structure Instruction

Processing Parameters

• Section width of the profile applied to: 100mm

• Section height of the profile applied to: 150mm

• Raw material length available: 1000- 6500mm

• Length machining range: 350-6500mm

• Length machining accuracy: ± 0.1mm/1000mm

• Angle cutting accuracy: ± 0.1 °

• Production auction: 13-22 seconds/section (determined by the number of profile processing elements)

Technical Parameters

• Power supply: 380V, 3phase-4wire, 50Hz

• Drilling or milling spindle rotating speed: 9000r/min

• Drilling or milling spindle power: 3.0kW

• Cutting spindle rotating speed: 3000r/min

• Cutting spindle power: 3.0kW

• Manipulator speed: 0-120 meters/min

• Milling feed speed: 0-15 meters/min

• Cutting feed speed: 0-20 meters/min

• Working air pressure: 0.5-0.8MPa

• Air consumption: 200L/min

• Total power: 55KW+dust collector 4kW

• Total weight: 15 tons

• Overall size (LxWxH): 23x3.2x2.3
